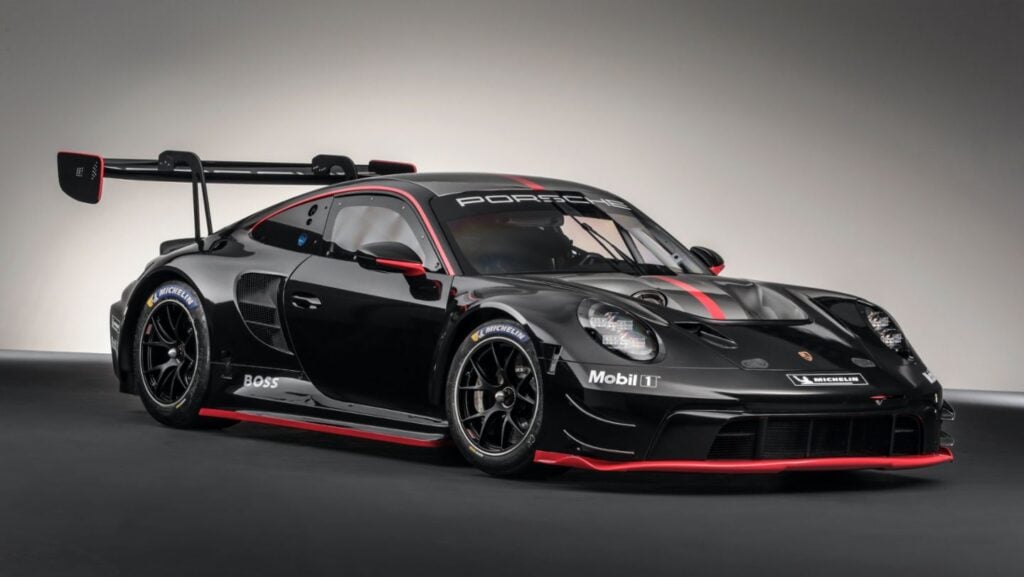

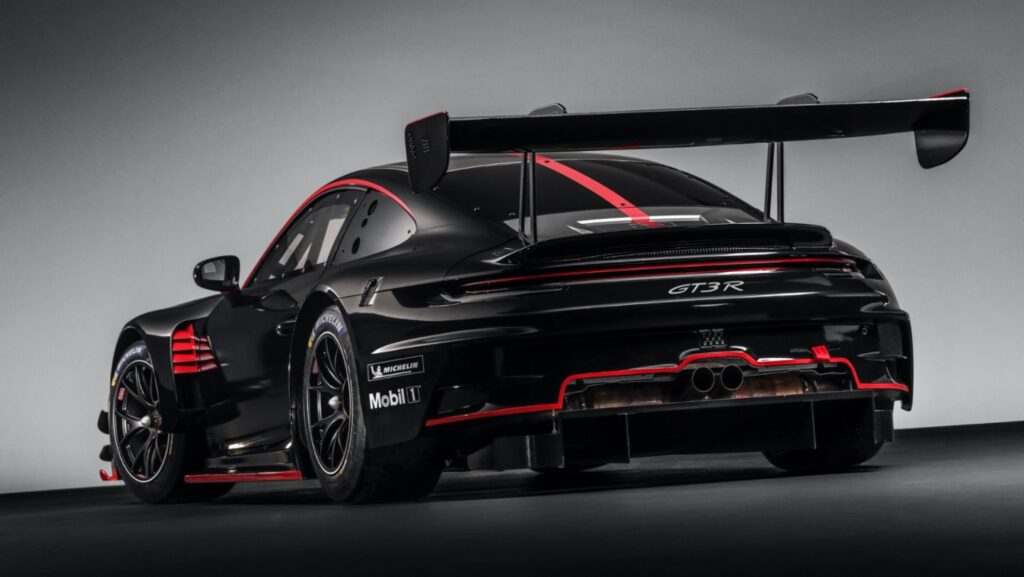

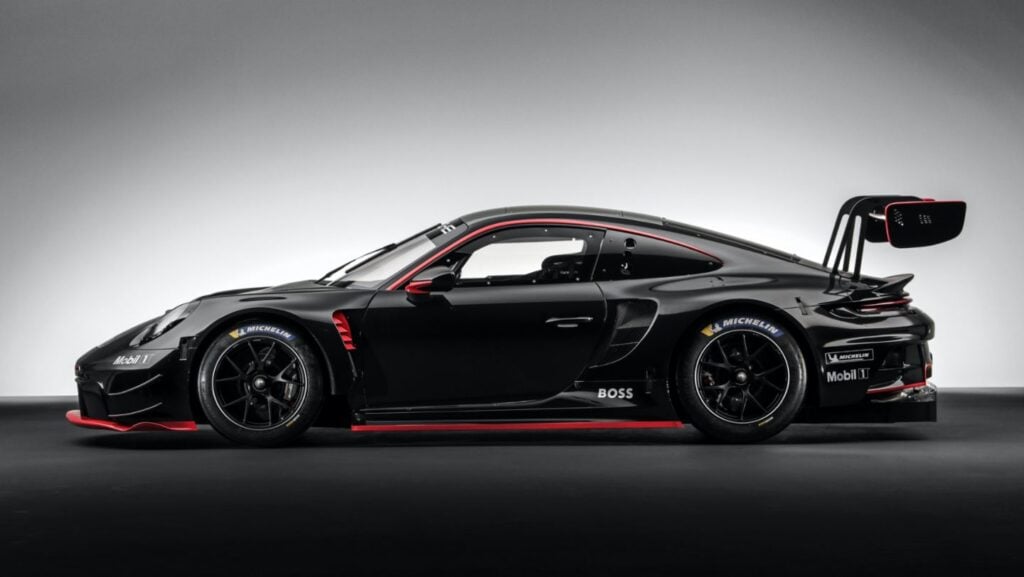

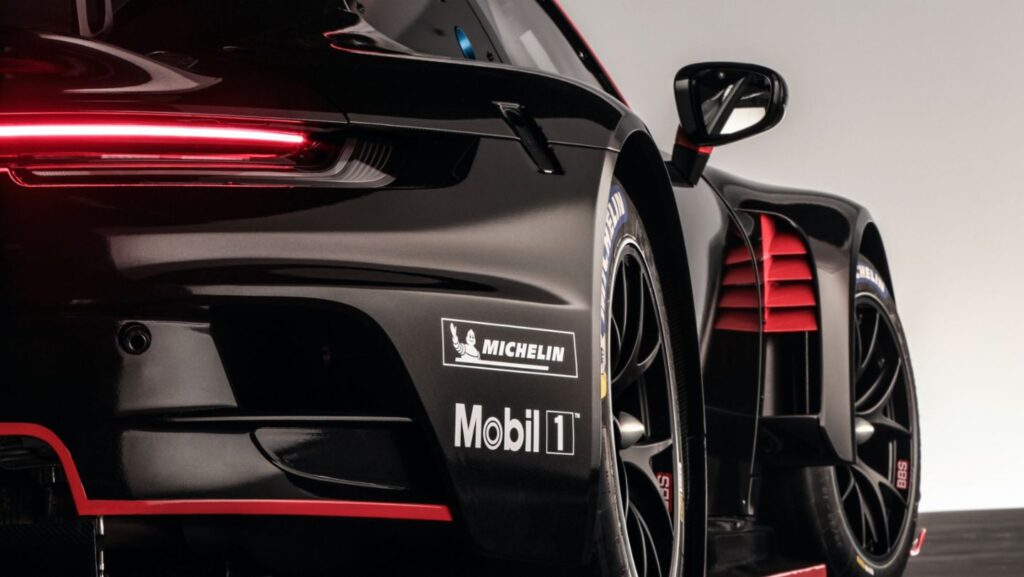

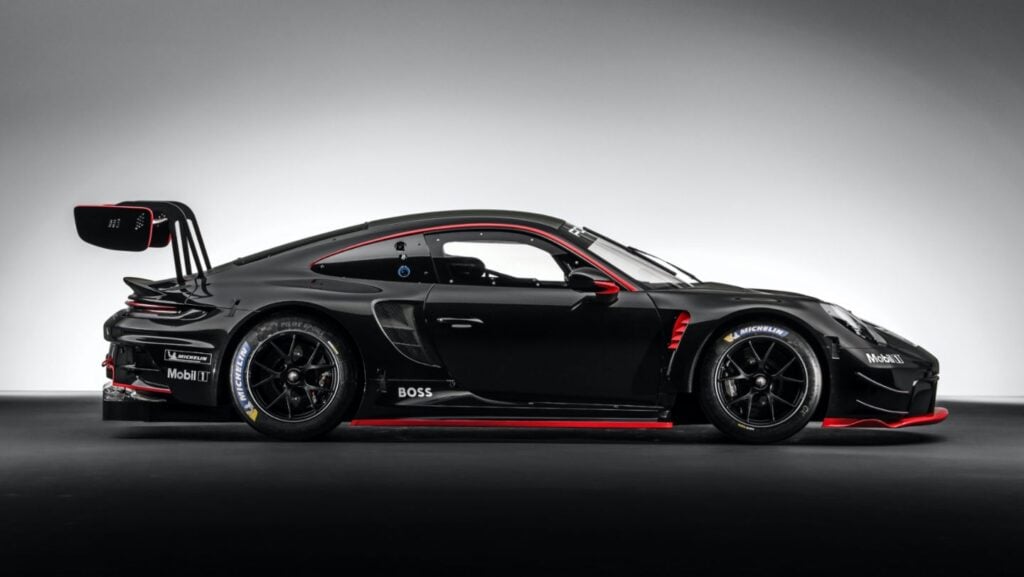

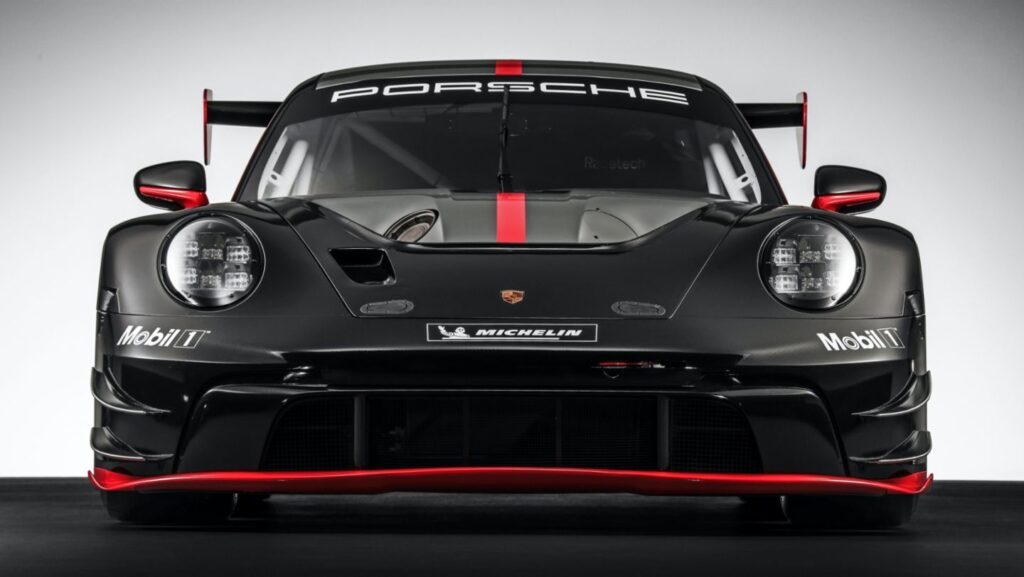

Porsche 992 GT3R Technical Specs
Overview
- Engine Type: 4.2L Six-Cylinder Boxer Engine
- Gearbox Type: G92/71
- Number of Gears: Sequential 6
- Chassis: Based on the Roadgoing 911 GT3 (992)
- Dry Weight: 1250 kg
- Wheels: 12.5J x 18″ Front 13.5J x18″ Rear
Suspension & Steering
- Front suspension Double wishbone front axle, adjustable ride height, camber and toe.
- Rear suspension Multilink rear suspension, adjustable ride height, camber and toe.
- Five-way adjustable racing shock absorbers
- Steering Electro-hydraulic power steering
Wheels & Tyres
- Single Piece BBS Alloy Center Mount Wheels
- Front 12.5J x 18″
- Rear 13.5J x18″
- Tyres Front 30/68-18 Michelin (Delivery Spec)
- Rear 31/71-18 Michelin (Delivery Spec)
- Centre lock Front and rear axles
Brakes
- Two independent brake circuits incorporating front and rear axle brake pressure sensors, driver adjustable brake-force distribution via brake balance system
- Front brake disc One piece steel – Diameter = 390 mm, Brake disc thickness 35.7 mm, 6 piston – aluminum brake caliper.
- Rear brake disc One piece steel – Diameter = 370 mm, Brake disc thickness 32.1 mm, 4 piston – aluminum brake caliper.
Chassis
- Based on roadgoing Porsche 911 GT3 (992)
- Welded-in roll cage according to FIA regulations
- Air jack system

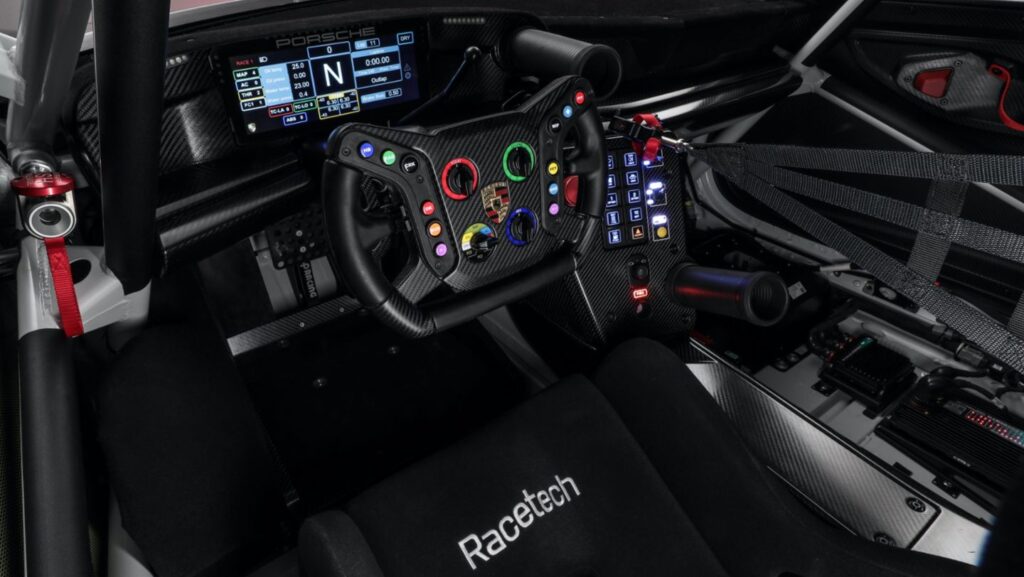

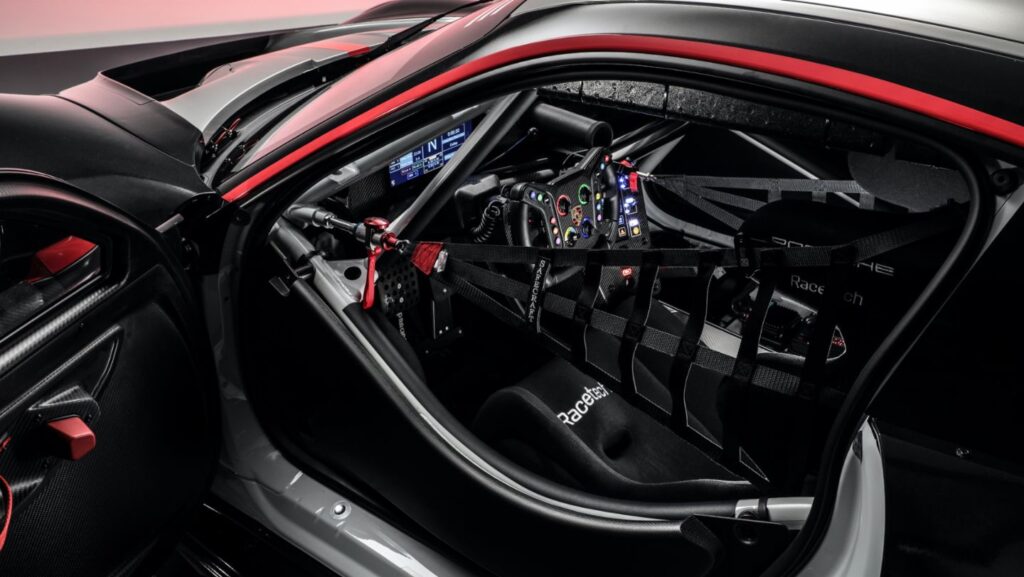

Interior
- Trim without noise insulation, integral roll cage

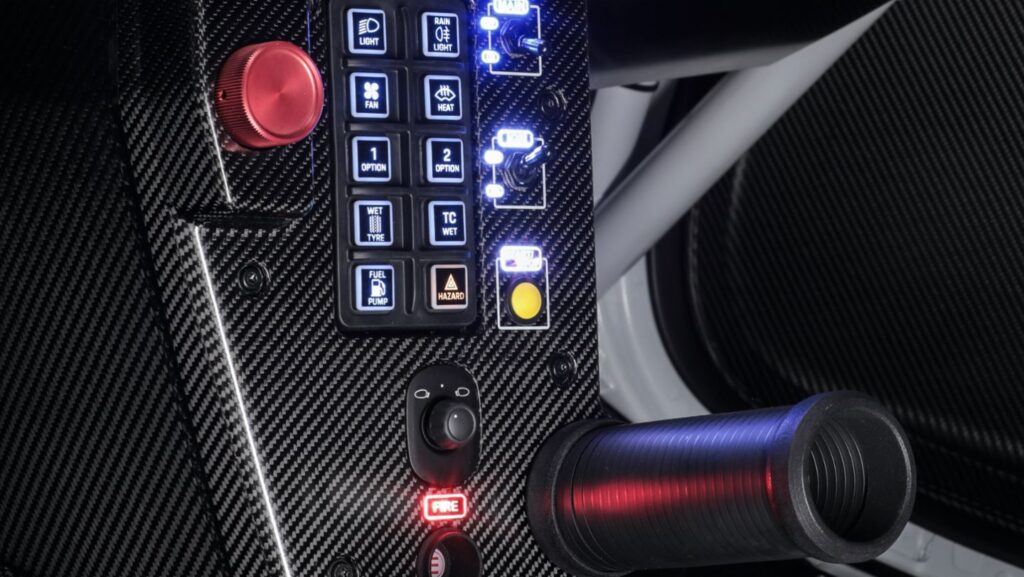

- Multifunctional carbon-fibre steering wheel with quick release coupling, shift paddles and illuminated push buttons; ergonomic digital touch panel with multi-color backlighting
- Latest generation Cosworth electronic components; Porsche Logger Unit; Porsche power box; 10.3-inch Porsche colour display with integrated RLU
- FT3 safety fuel cell with a nominal capacity of 117 litres. The fuel cell complies with current FIA standards and is housed in a protective carbon fibre crash structure
- Drivers’ seat with seat ventilation
- 6 Point safety harness
- HANS System All cars from the 2004 model onwards are optimised for the HANS safety system
- Fire extinguisher system, compliant with FIA standard
- Roof rescue hatch for easier access and extrication in an emergency
Dimensions & Weight
- Length 4619 mm
- Width Front 2039 mm
- Width Rear 2050 mm
- Wheelbase 2507 mm
- Dry Weight ca. 1250 kg
Fluid Capacities
- Fuel system 117 L.
- Gearbox 3.5 L
- New Engine ca.12 L.
- Engine Oil Change Use new oil and refill the volume of oil drained + 0.250 litre (oil filter volume)
Lubricants & Fuel
- Engine oil Mobil 1 ESP X3 (0W – 40)
- Coolant 20L (Delivery spec: 50/50 water & antifreeze)
- Gearbox oil ‘Mobilube’ SHC
- Steering servo oil Pentosin
- Fuel 98 RON Super Plus unleaded
- Brake fluid Racing Brake Fluid-325° (DOT 4) Porsche spare part No: 991.355.960.8A
- Air jack A pressure of 35-38 bar is necessary to operate the air jacks.
