Porsche 718 Cayman GT4 RS Clubsport Technical Specs

Summary
The most significant change introduced is the 4.0 litre six-cylinder boxer engine. This high-revving powerplant has been taken directly from the 911 GT3 Cup race car and develops 500 PS* (horsepower) in the 718 Cayman GT4 RS Clubsport – 75 PS* more than the previous GT4 Clubsport model.
In addition to many upgraded details, the focus in developing the new 718 Cayman GT4 RS Clubsport was on further improving overall performance. The standard seven-speed dual-clutch transmission (PDK) fitted to the car now uses all seven forward gears, rather than six. All gears feature shorter ratios than in the previous model.
One of the reasons for the strong demand for these vehicles is due to the low running costs. The use of well-proven series production technology, combined with racing-specific components, significantly reduces the costs for customer teams.
The 718 Cayman GT4 RS Clubsport continues this tradition and offers a further improvement in terms of its competitiveness. The 500 PS* 4.0 litre six-cylinder boxer engine taken directly from the current 911 GT3 Cup racing car is almost 18 per cent more powerful than the 3.8 litre engine that was used in the previous model.
Thanks to an optimised air intake, maximum power is achieved at 8,300 rpm – 800 rpm higher than the previous engine. The new engine revs up to 9,000 rpm. It develops 465 newton metres (Nm) at 6,000 rpm instead of the previous 425 Nm at 6,600 rpm. The result is a much wider usable speed band, which makes driving the car much easier for pro-racers and amateur drivers alike.
Suspension & Steering
- McPherson strut, adjustable in height, camber and toe
- 2-way shock absorber with improved characteristic curve
- 5-bolt wheel hubs
- Adjustable sword-type anti-roll bar on front and rear axles
- Racing-optimised PSM, map switch for setting ABS, ESC and TC
Wheels & Tyres
- Front 9J x 18″
- Rear 10.35J x18″
- Delivery on Michelin Transport Tires
Brakes
- Two independent brake circuits, brake balance adjustment via balance beam system
- Front brake disc One piece steel – Diameter = 380 mm; Width = 32 mm, 6 piston – aluminum brake caliper.
- Rear brake disc One piece steel – Diameter = 380 mm; Width = 30 mm, 4 piston – aluminum brake caliper.
Chassis
- Based on road-going GT4 RS
- Lightweight body in intelligent aluminium-steel Composite construction

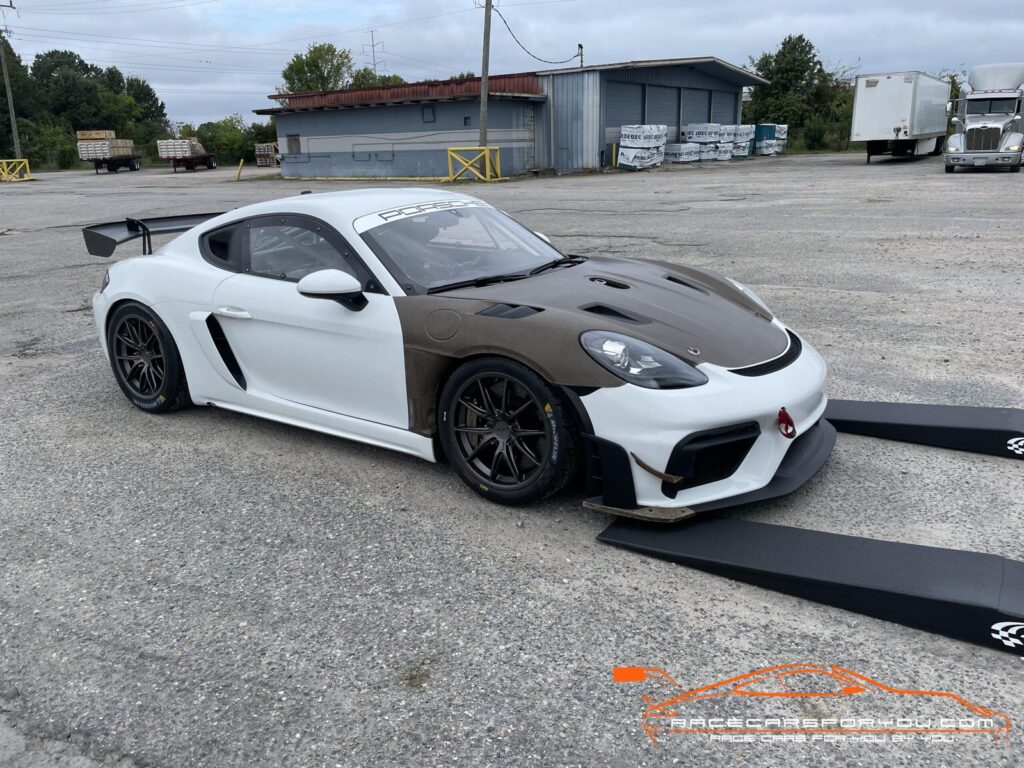

- Natural fibre composite body panels (doors, Front lid, front wings, add-on parts and rear wings)

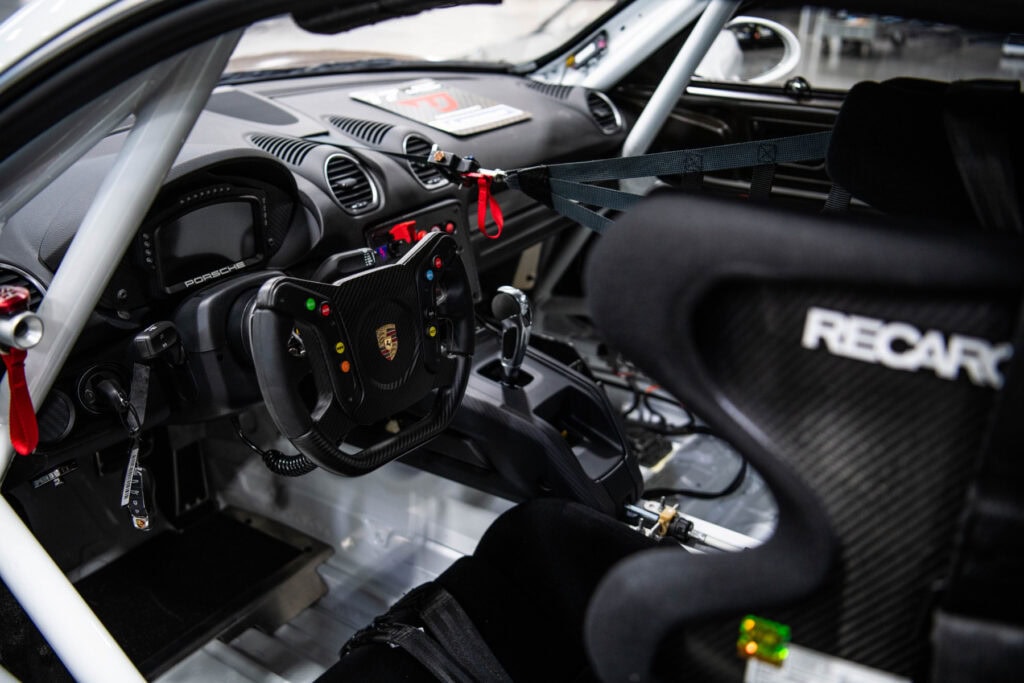

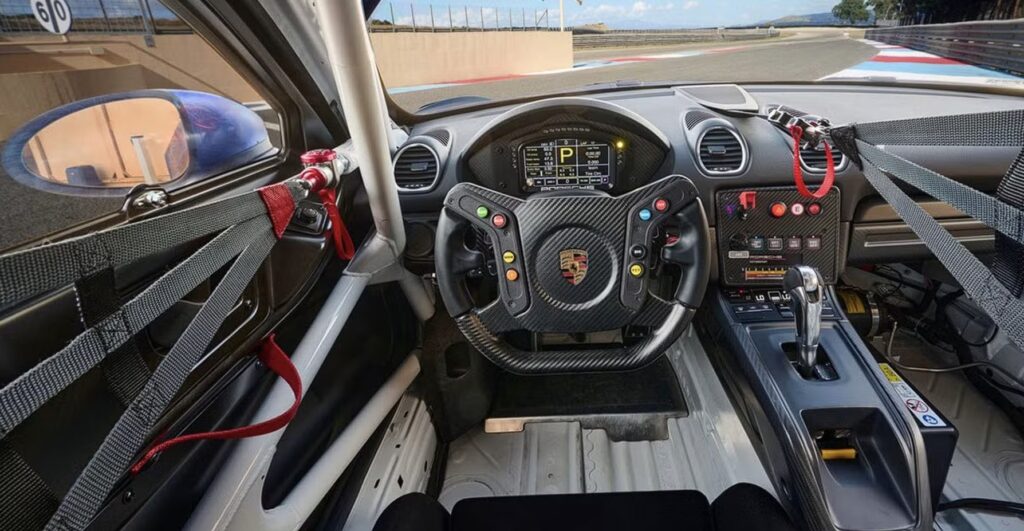

Interior
- Trim without noise insulation, integral roll cage
- Recaro racing bucket seat with fore/aft adjustment, according to FIA regulation, padding system for individual adjustment to the driver
- 6 Point safety harness
- HANS System All cars from the 2004 model onwards are optimised for the HANS safety system
- Fire extinguisher system, compliant with FIA standard
- 115-litre FT3 safety fuel cell with “Fuel Cut Off” safety valve complying with FIA regulations (Competition)
- COSWORTH instrument cluster ICD with integrated data logger
Dimensions & Weight
- Total Length 4450 mm
- Total Width 1810 mm
- Total Height 1238 mm
- Wheelbase 2476 mm
- Dry Weight ca. 1330 kg
Fluid Capacities
- Fuel system 115 litres
- Initial engine oil fill level: 9 litres
- Fill volume at engine oil change: drained engine oil volume + 0.25 L (oil volume of oil filter)
Lubricants & Fuel
- Engine oil Mobil 1 ESP X3 (0W – 40)
- Coolant 25 L
- Recommendation: 5 L anti-corrosion additive + approximately 20 L water
- Gearbox oil ‘Mobilube’ SHC
- Fuel 98 RON Super Plus unleaded
- Brake fluid PFC Brake Fluid-325 ° (DOT4)
- Air jack A pressure of 35-38 bar is necessary to operate the air jacks.
