Brand New Ligier JS P325 LMP3

Price On Asking
[ Race Car / Prototype ]

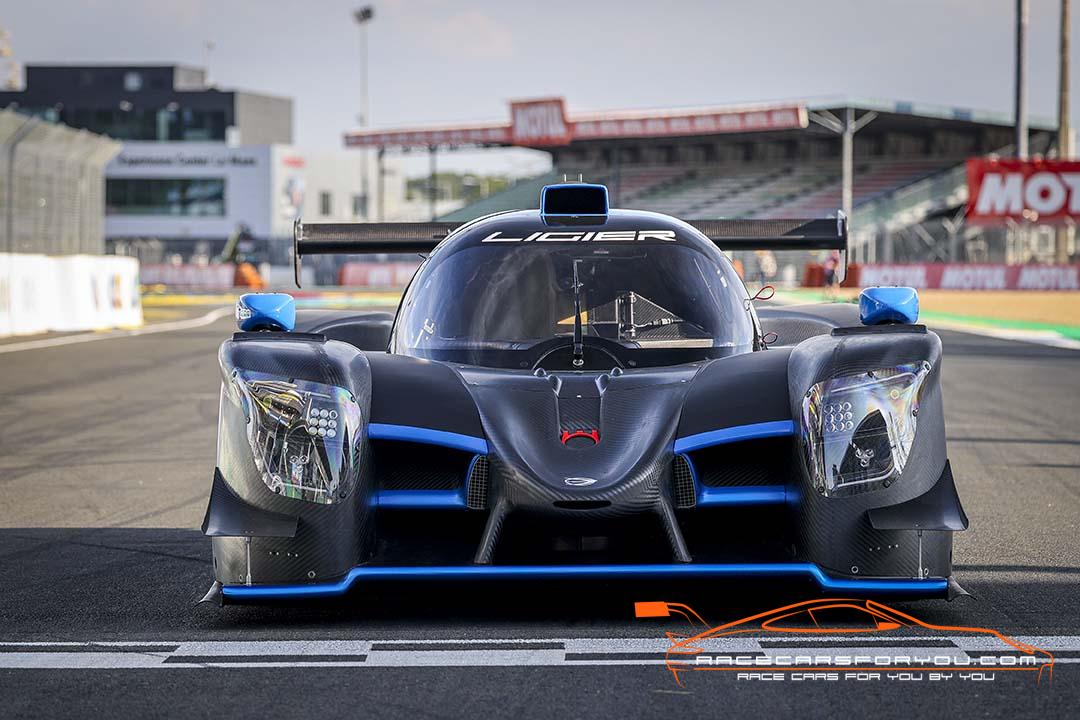

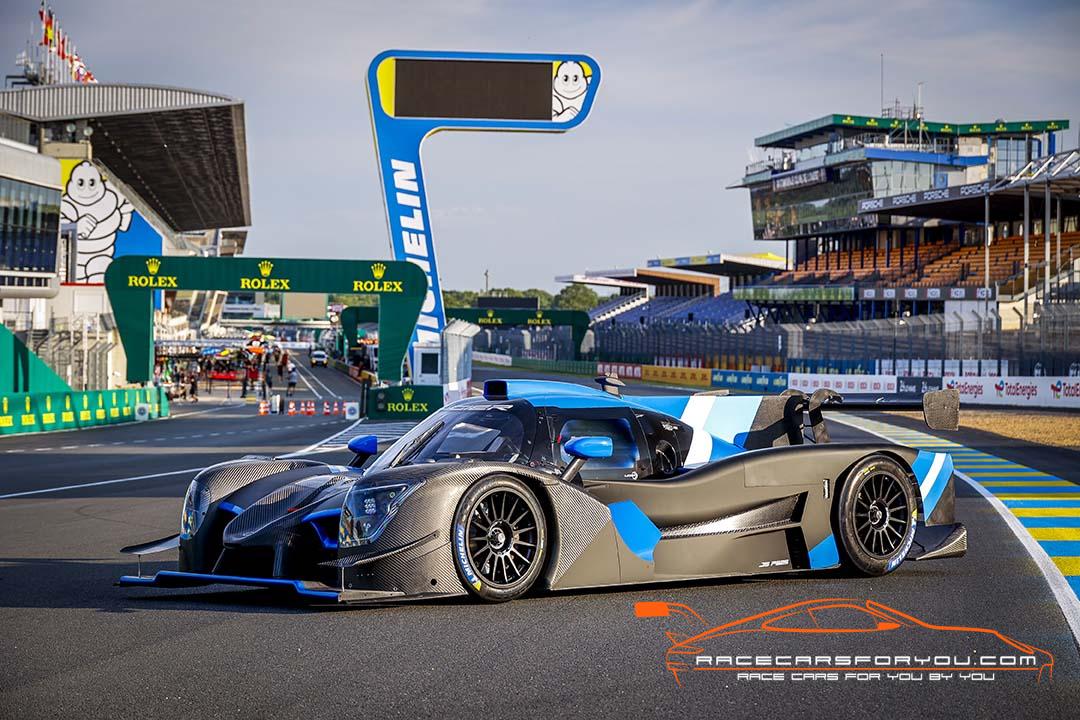

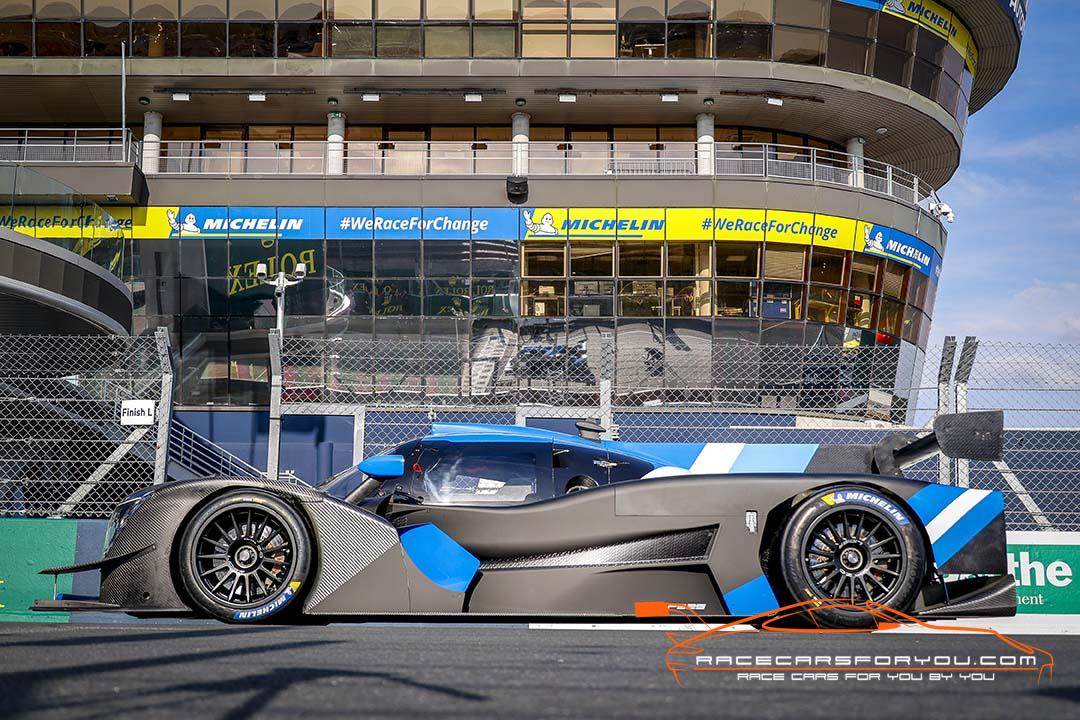

Ligier JS P325 LMP3 For Sale

Brand New Ligier JS P325 LMP3 available for sale, combining a lightweight HP Composites carbon monocoque with proven LMP3 specification, advanced suspension, sequential pneumatic paddle-shift gearbox, and a Toyota V6 twin-turbo powerplant.

Built around a carbon monocoque chassis and carbon bodywork, the JS P325 features a sophisticated double-wishbone suspension package with pushrod-actuated spring/damper assemblies, Öhlins TTX40 dampers, adjustable anti-roll bars, and front and rear third elements.

Power comes from a Toyota V6 twin-turbo 3.5-liter engine producing 470 hp, paired with an Xtrac 1152 six-speed sequential gearbox and Megaline semi-automatic pneumatic paddle-shift system.

KEY FEATURES

  • Ligier JS P325 LMP3
  • Toyota V6 twin-turbo 3.5L — 470 hp
  • HP Composites carbon monocoque and bodywork
  • Xtrac 1152 six-speed sequential gearbox
  • Megaline pneumatic paddle-shift system
  • Öhlins TTX40 four-way adjustable dampers
  • Pushrod and spring-damper suspension
  • Adjustable anti-roll bar system
  • Front and rear third elements
  • Brembo braking package with six-piston calipers
  • 14″ front and rear brake discs
  • 18″ OZ Racing magnesium wheels
  • Hydraulic power-assisted steering
  • Magneti-Marelli engine and gearbox control units
  • Zylon side panels
  • Carbon-shell driver seat
  • Double carbon seat
  • Cockpit ventilation
  • HANS-compatible headrest
  • Built to 2025 ACO regulations

TECHNICAL SPECIFICATION

Chassis:
Carbon monocoque by HP Composites with carbon bodywork. Overall dimensions measure 4,605 mm in length, 1,900 mm in width, with a 2,860 mm wheelbase.

Engine & Electronics:
Toyota V6 twin-turbo 3.5-liter engine producing 470 hp, with Magneti-Marelli engine and gearbox control units.

Gearbox:
Xtrac 1152 six-speed sequential gearbox with aluminum casing, Megaline semi-automatic pneumatic steering-wheel paddle shift, and dedicated gearbox oil cooling.

Suspension:
Double-wishbone suspension with pushrods and spring-damper combination, four-way adjustable Öhlins TTX40 dampers, adjustable anti-roll bars, and third elements front and rear.

Brakes:
Brembo braking package with six-piston calipers front and rear and 14-inch discs.

Wheels:
18-inch magnesium OZ Racing wheels, measuring 12.5 inches wide at the front and 13 inches at the rear.

Safety:
2025 ACO specification including Zylon side panels, driver padding, carbon-shell driver seat, double carbon homologated seat, cockpit ventilation, and HANS-compatible headrest.

A serious LMP3 platform for competition, testing, or driver development. Inquire for full details and pricing.
