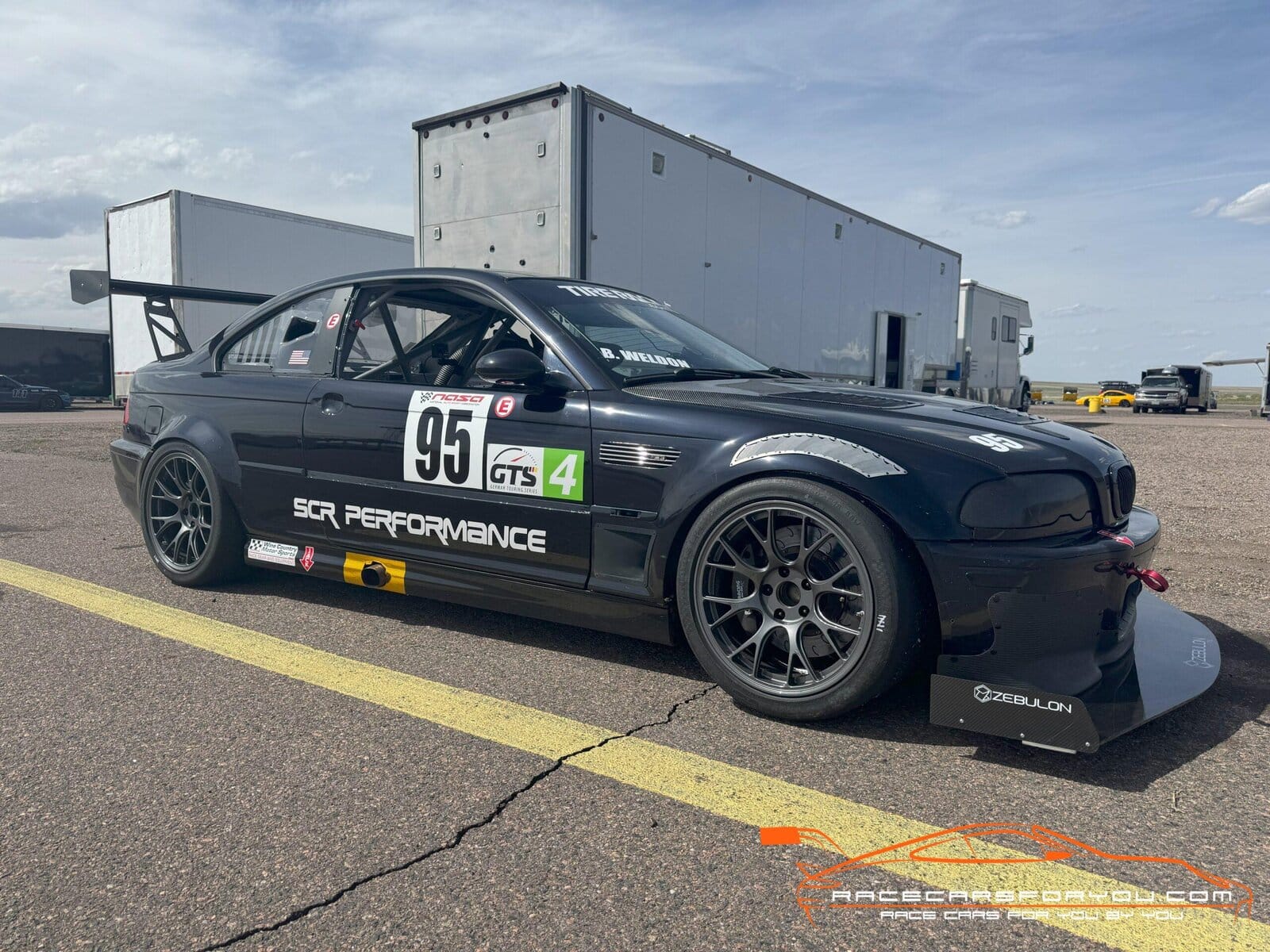

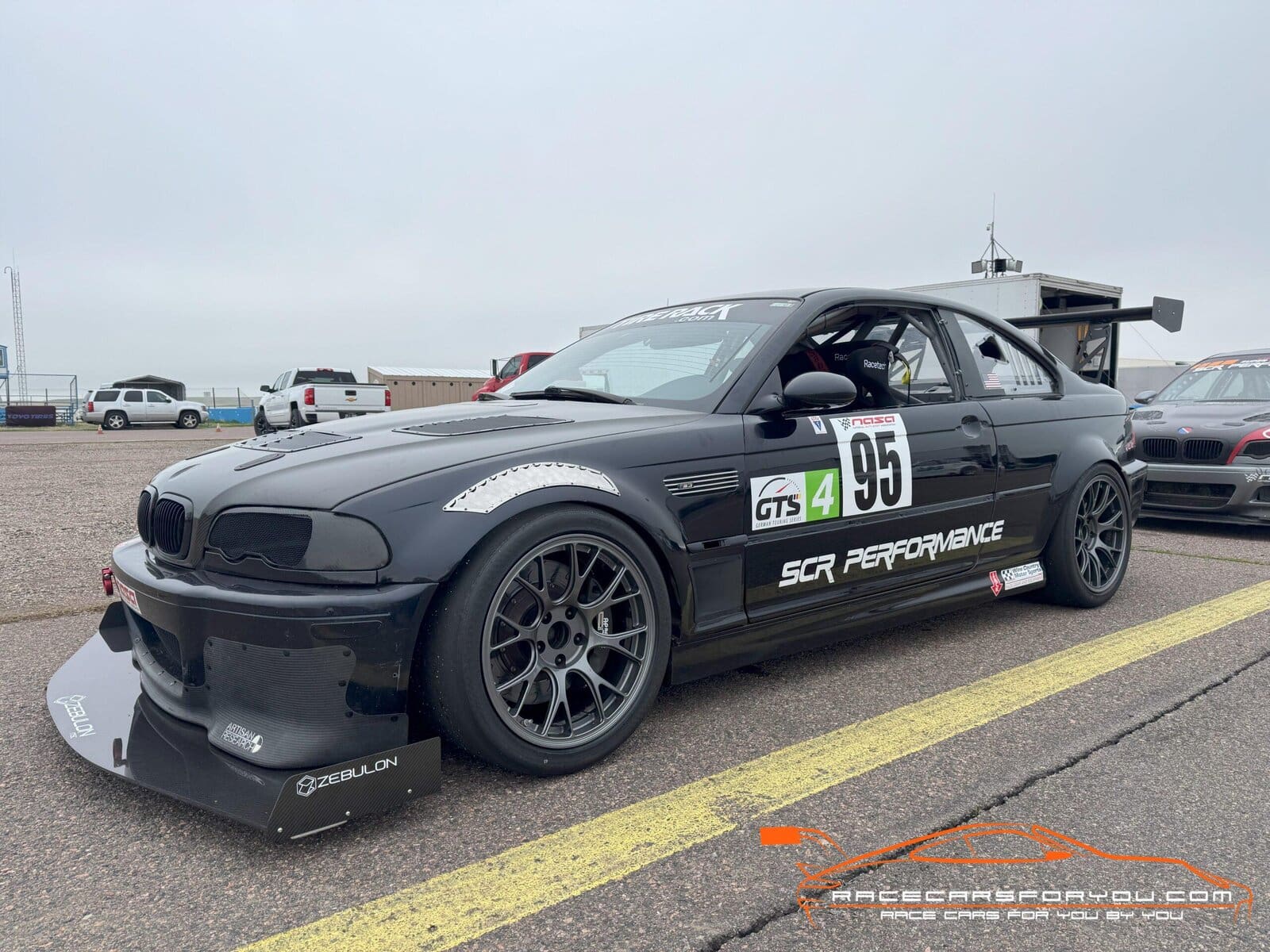

2001 BMW E46 M3 GTS4 Racecar *Stroker Engine*

$70,000
[ Race Car / Touring / Sports ]
Play

This car is insane – it is a HiSpeed/JVR built car and has $70K+ into the build over the last few years. Flared fenders and side exit exhaust – you won’t find anything like this. This car is ready to race and is maintained by the premier BMW race shop in Colorado. No history of accidents, ~3K miles on it from it being built as a “race car.” The pictures don’t do it justice and this car needs nothing to be run for the rest of the season.
VIN: WBSBL93411JR10943
Mileage (chassis): 157,170

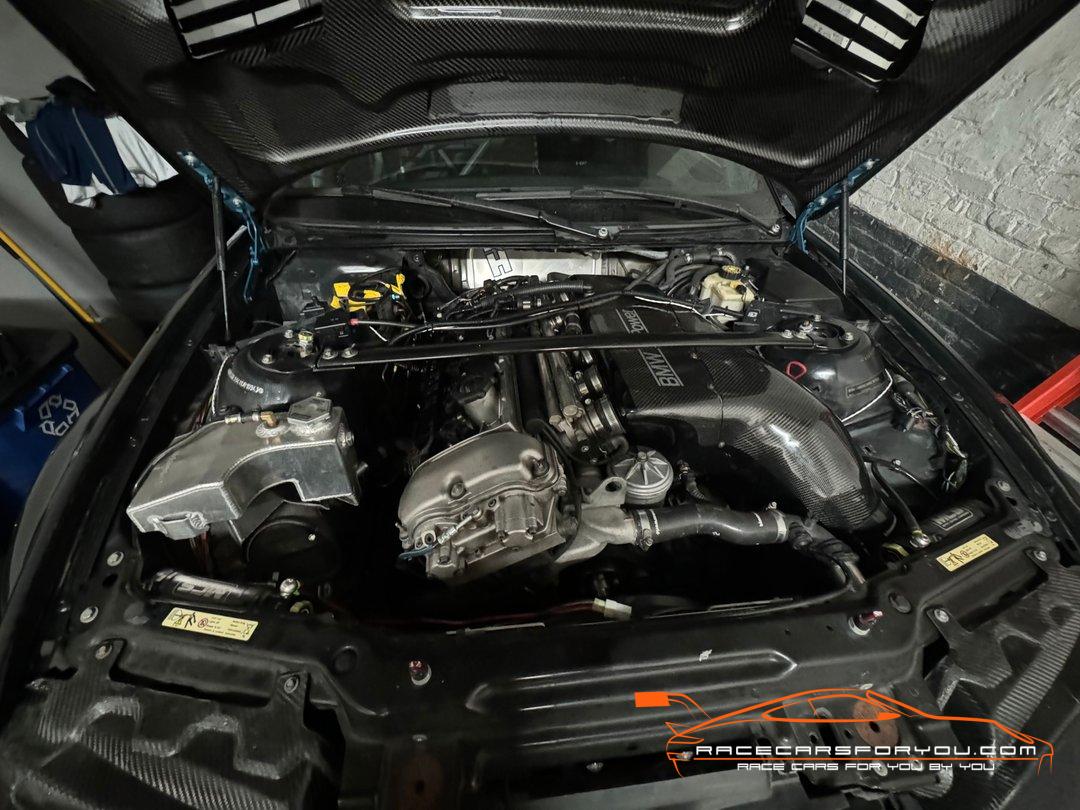

Engine/Exhaust/Cooling
– S54 with ~2k miles on it since being built
– Schrick 288/280 Camshafts (brand new – 0 miles)
– Schrick Coated Cam followers (brand new – 0 miles)
– JE Pistons (87.5mm)
– Arrow Connecting Rods
– Bimmerworld WPC-Treated rod bearings
– ARP main stud kit
– ARP head stud kit
– VAC Motorsports Stage 3 cylinder head
– Supertech High Performance Valves and Valve Spring Kit, Titanium retainers
– Car dyno’d at SCR Performance @ 5,000 ft. of elevation (340whp – NASA GTS4 classification)
– EPIC Motorsports (by Randy) Custom Tune
– SupersSprint V1 Full Stepped Headers
– Bimmerworld CSL 120mm carbon intake plenum
– Bimmerworld Fuel starvation kit

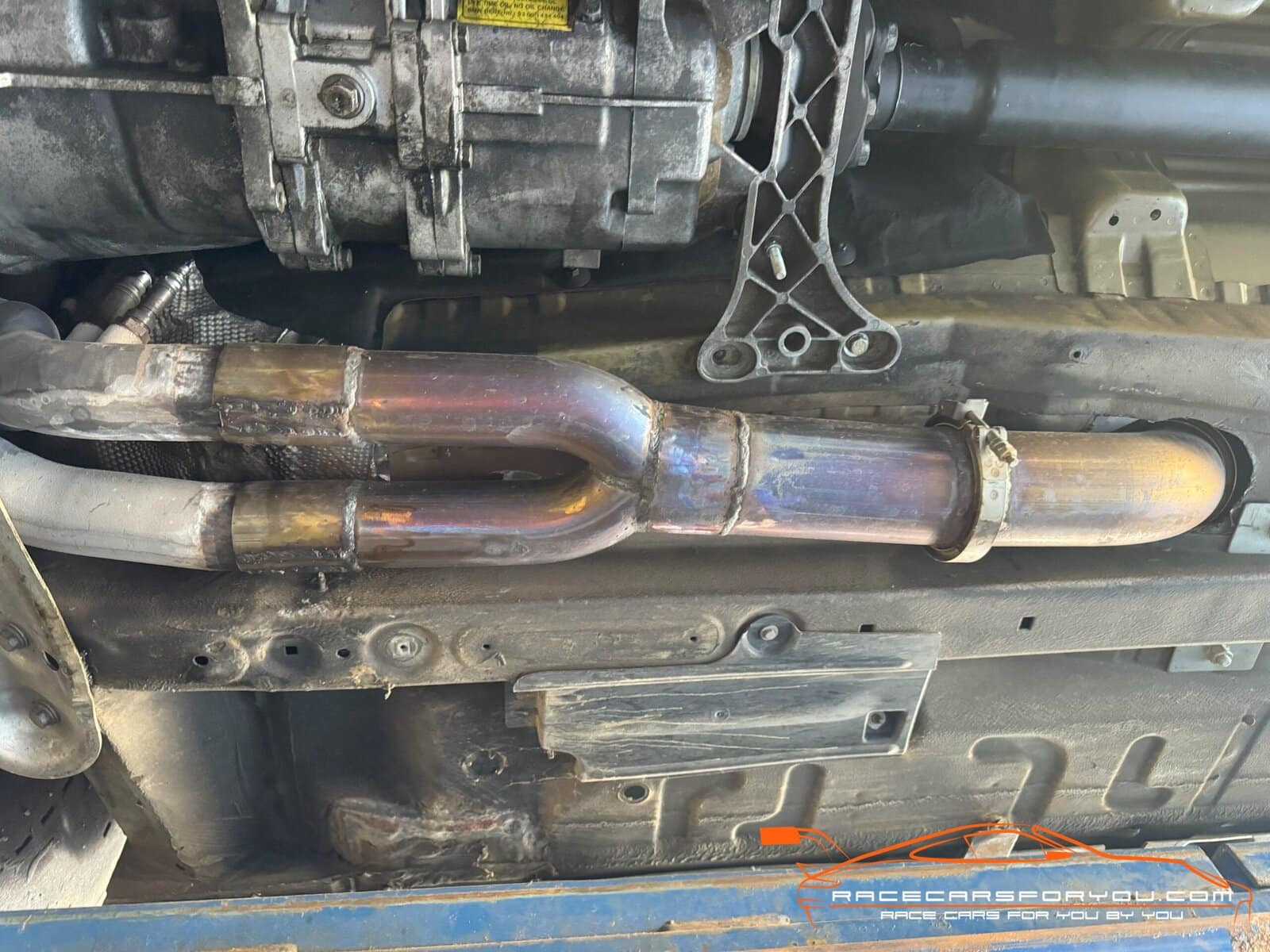

– HiSpeed Motorsports Side-Exit exhaust
– Bimmerworld Aluminum Coolant Expansion Tank (by Moroso)
– Bimmerworld C&R Aluminum Radiator
– Bimmerworld C&R Oil Cooler
– Bimmerworld Oil Cooler Diverter Valve Kit
– Bimmerworld radiator hoses
– Turner Motorsports Constant Oil Pressure Valve/Oil Relief Valve
– Spal 16” Low Profile Fan – Pull
– Spal Fan Relay Harness Kit

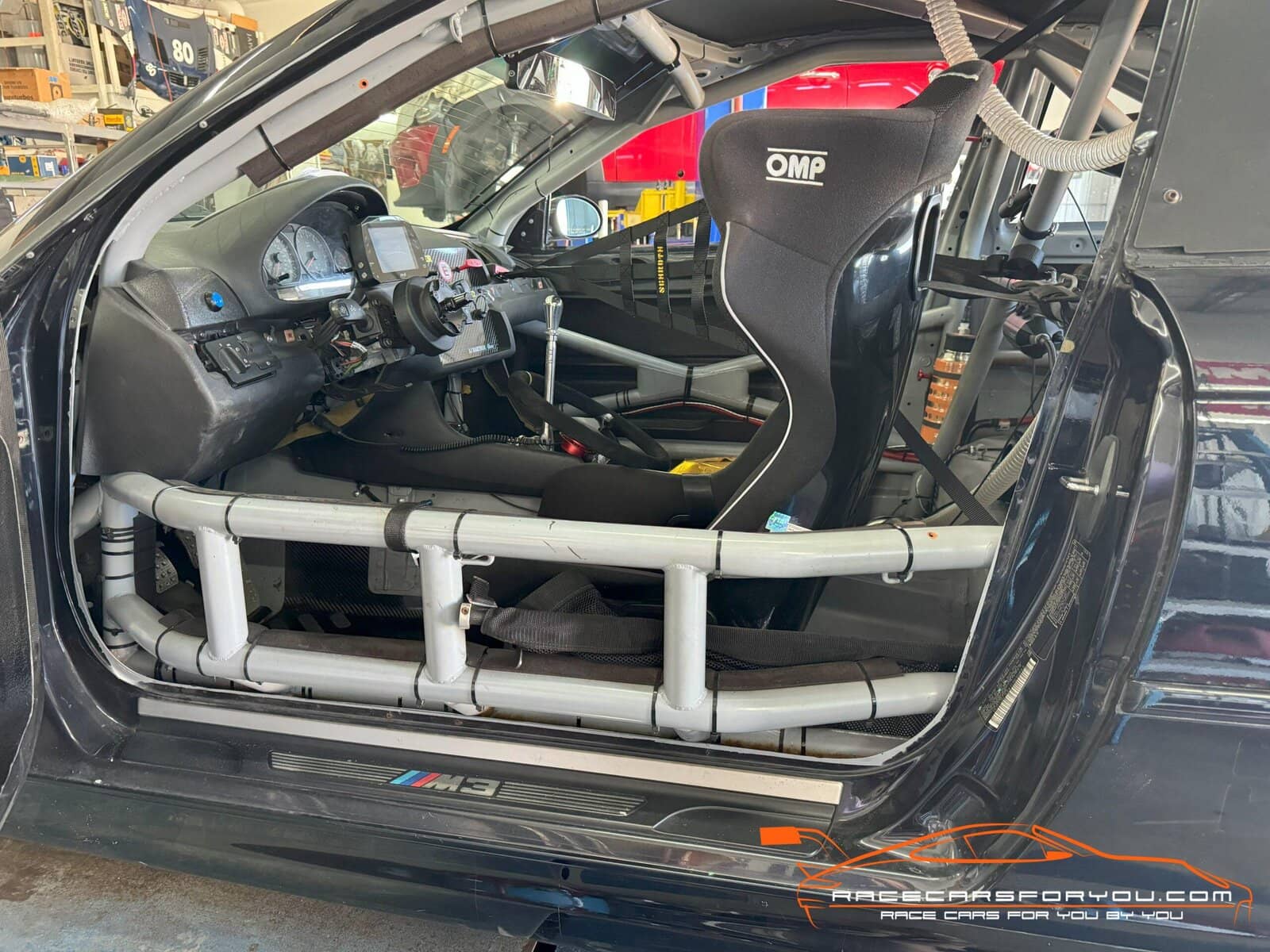

Interior
– OMP Velocita’ Superleggero 350mm Suede Steering Wheel
– Rothsport Quick Release Hub (Black anodized)
– Artisan Research Carbon Fiber Driver’s Floor Panel
– AJ Hartman Carbon Fiber Center Dash Plate
– Bimmerworld Longacre Full View Convex Rear-View Mirror Kit

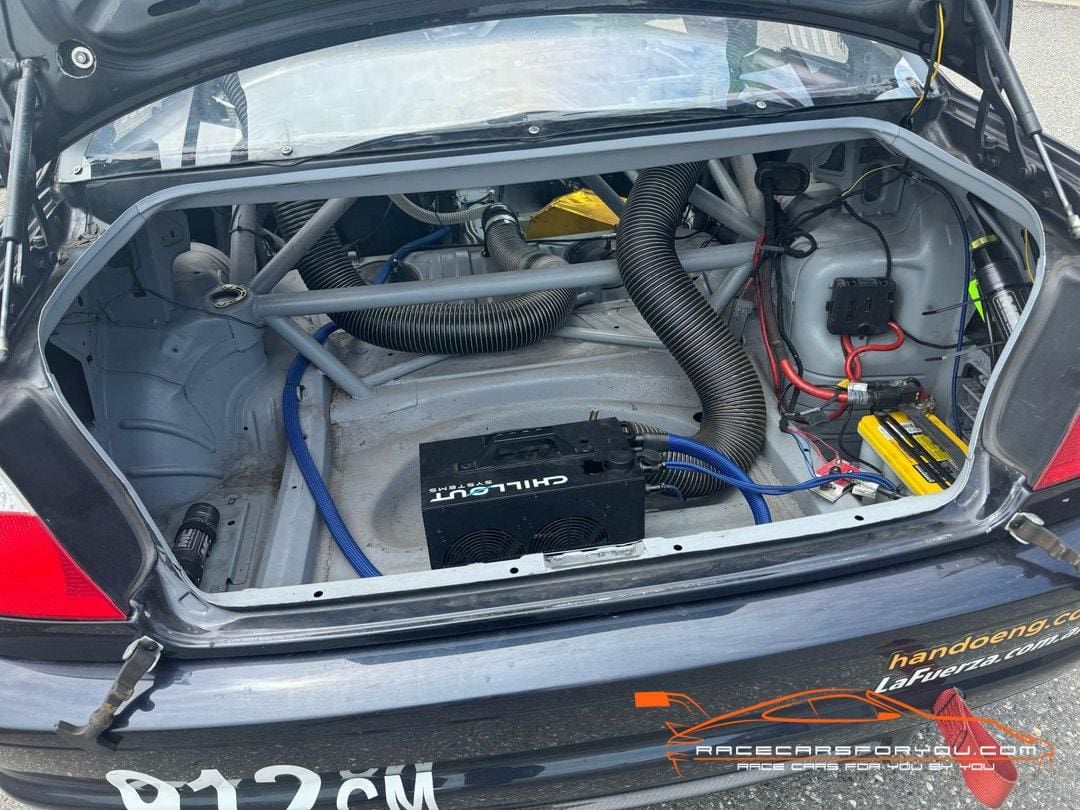

– Chillout Quantum Pro system w/remote AirCon Cooler Remote Control
– AiM Smartycam HD 2.1(wired in to MXS dash)
– AiM MXS Dash
– RTD Motorsports v0 Aluminum Short Shifter (Black Knob, AKG Double Shear Selector Rod “DSSR”)
– Racetech RT4200HR (Driver – Certified through 2028) – new
– Brey-Krause Steel Seat Side Mounts (Driver)
– Brey-Krause Seat Mount
– Bimmerworld Mesh Window Net by Teamtech (Driver-left hand side) Net – Certified through 2023
– Schroth 6-point belt 2” (Driver) – Certified through 2024
– Turner Motorsport Heel/Toe Aluminum Pedal

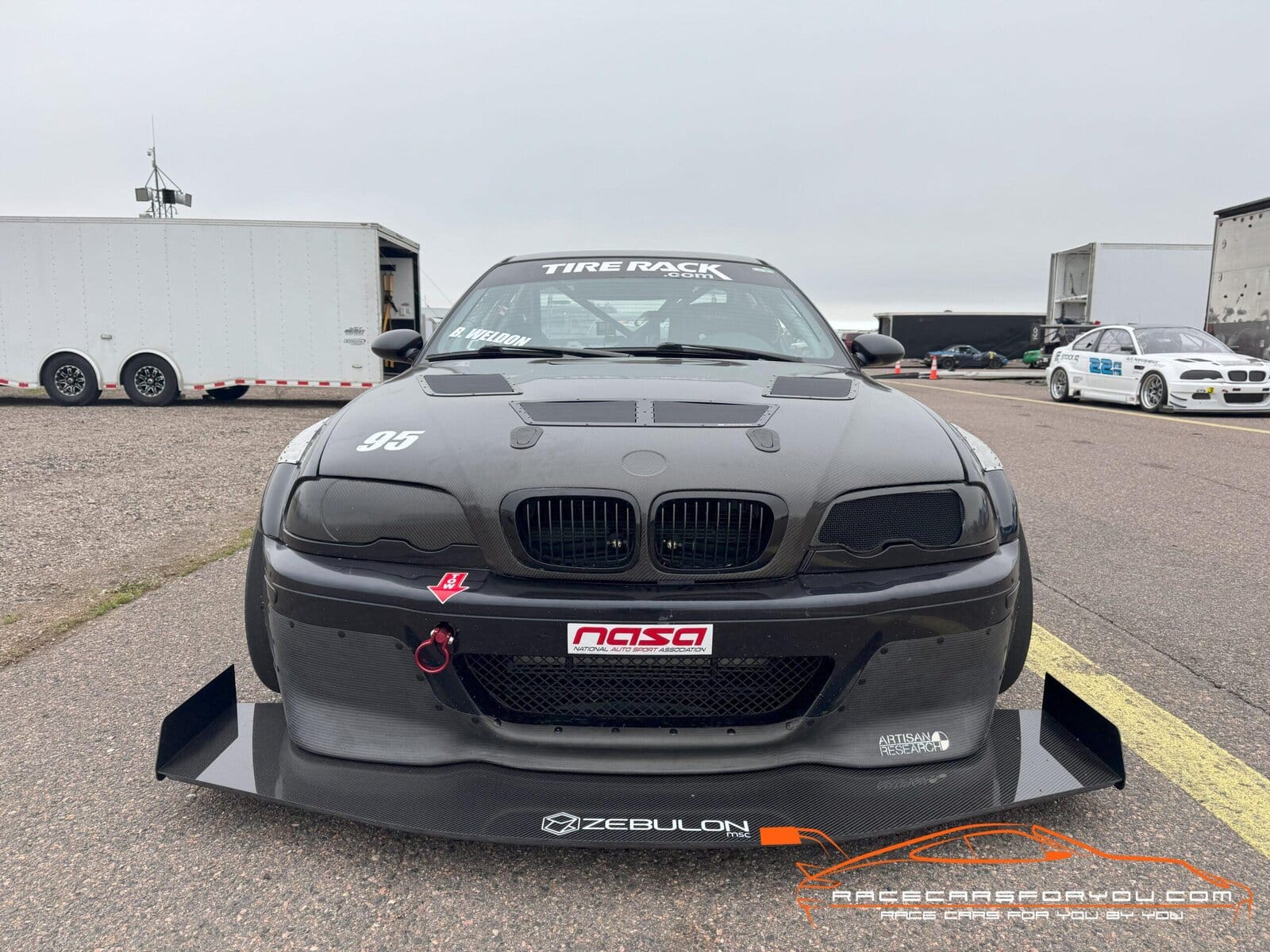

Aero/Body

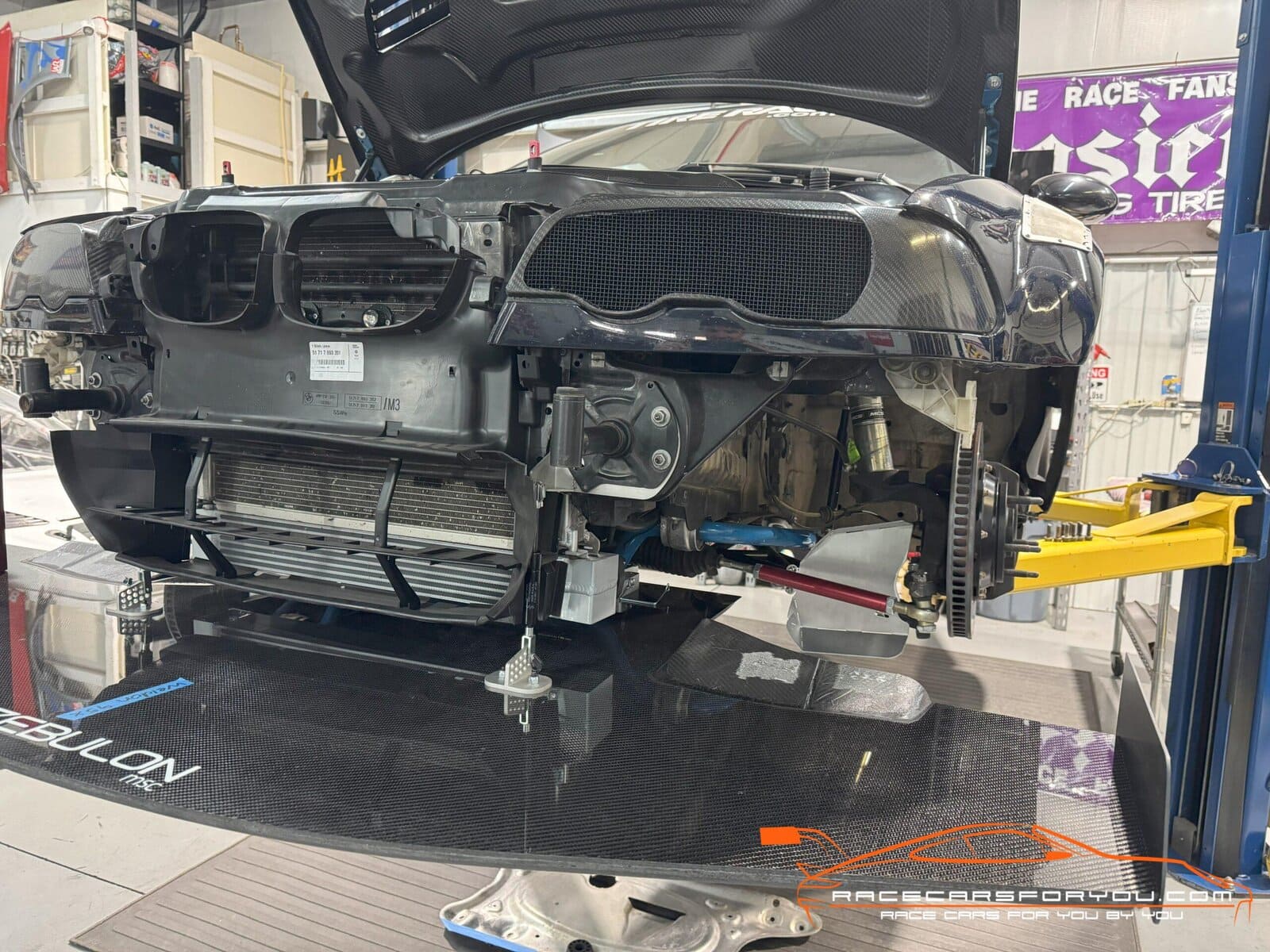

– Zebulon Motorsports front splitter
– Artisan Research Front Air Dam
– Achilles Motorsports Front Dive Planes (currently uninstalled)
– AJ Hartman Carbon Fiber roof
– AJ Hartman Carbon Fiber Hood (OEM Style)
– Fiberglass Rear Trunk Lid
– Bimmerworld E46 Carbon Fiber Doors
– Bimmerworld E46 M3 Carbon Headlight Blanks
– Bimmerworld E46 M3 Carbon Headlight (Left) Duct Insert
– Bimmerworld E46 M3 Carbon Fiber Rear Diffuser (Bumper & Undertray)
– Bimmerworld V3 Carbon Race Wing
– Trackspec Motorsports Hood Vent Kit (both side and center vents)
– AeroCatch 120-2000 Above Panel hood latches

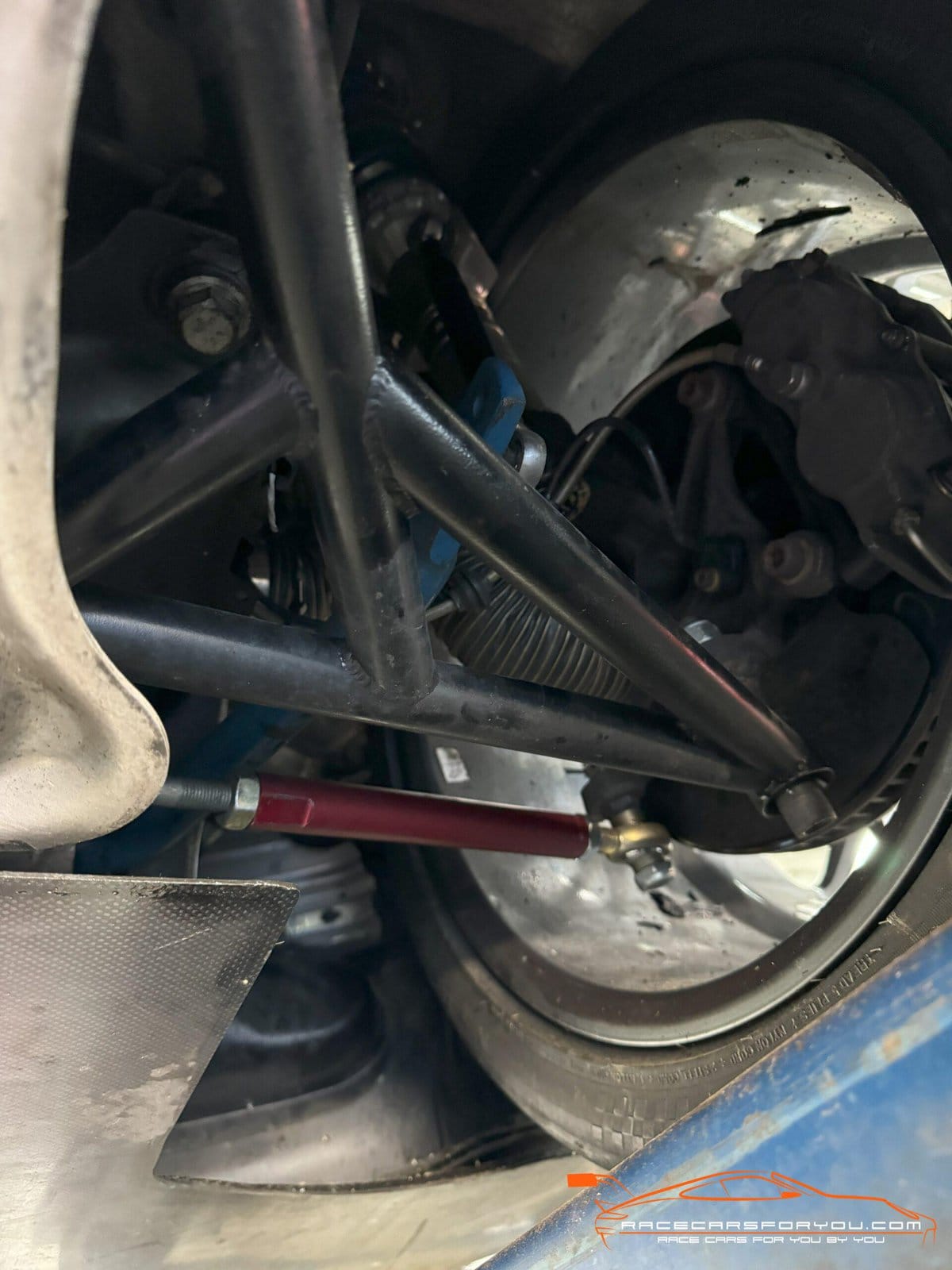

Suspension
– MCS 2-Way Remote Damper Set
– Bimmerworld Tubular Race Front Control Arms
– Bimmerworld Race Rear Adjustable Camber Arms
– Bimmerworld 10 – 11.5” Strut-Mounted Front Swaybar End Links
– Hotchkis Adjustable Rear Sway Bar Links

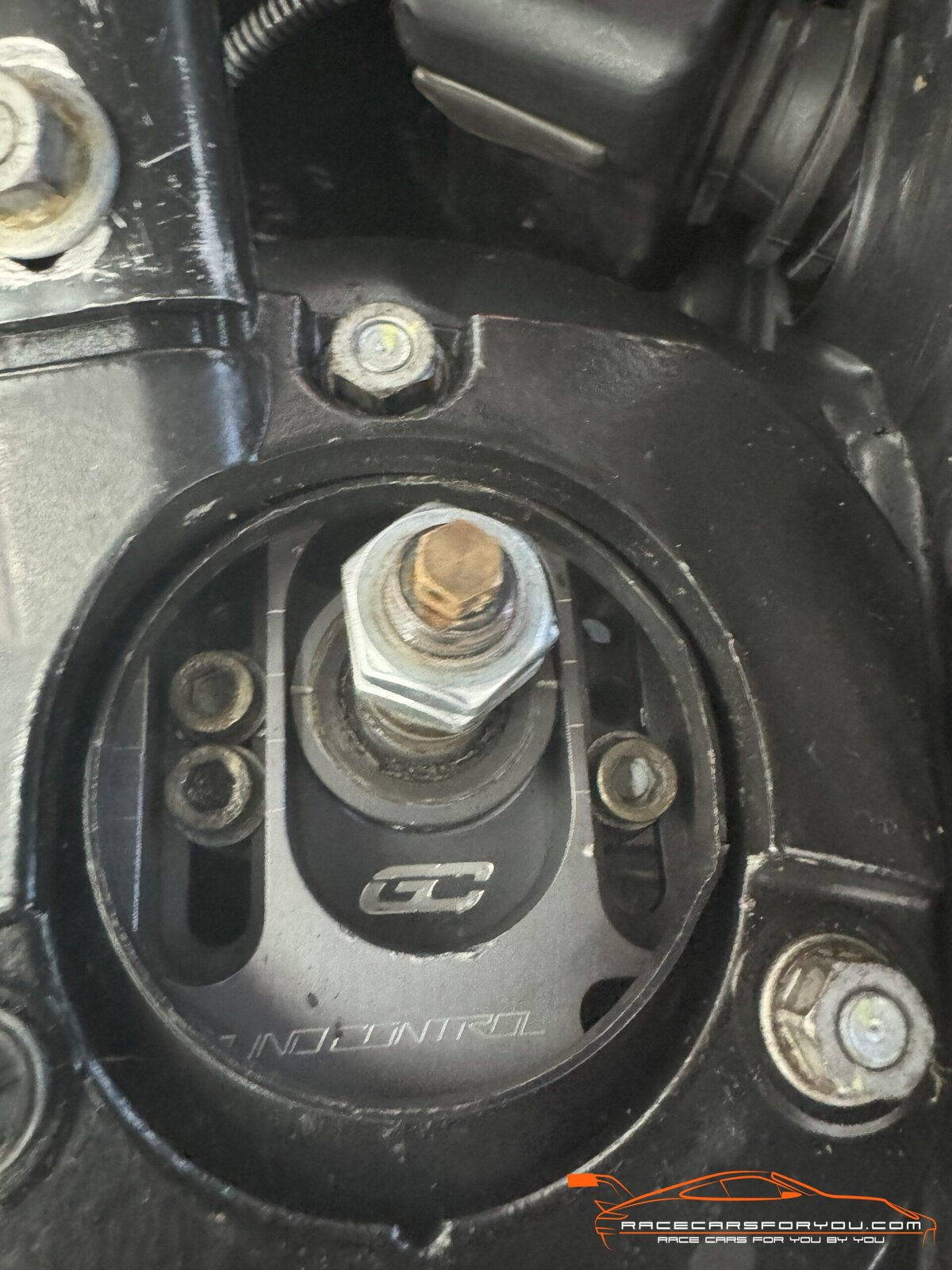

– Ground Control Race Camber/Caster Plates
– Ground Control Rear Shock Mounts (Race Version – 12mm)
– Ground Control Front Offset Control Arm Bearings
– Ground Control Adjustable Tie Rods
– Hyperco 2.25, 5” 1000 lb. spring (rear)
– Hyperco 2.25, 6” 850 lb. spring (front)
– Turner Motorsports (H&R) Front & Rear Sway Bars
– Turner Motorsports Solid Aluminum Subframe Bushings

Brakes
– AP Racing Pro 5000 R Brakes (Front & Rear)
– AP Racing J Hook Brake Discs
– Spiegler Stainless Steel Brake Lines
– EPIC Motorsports MK60 ABS System
– Ferodo DS3.12 (Front & Rear) Brake Pads

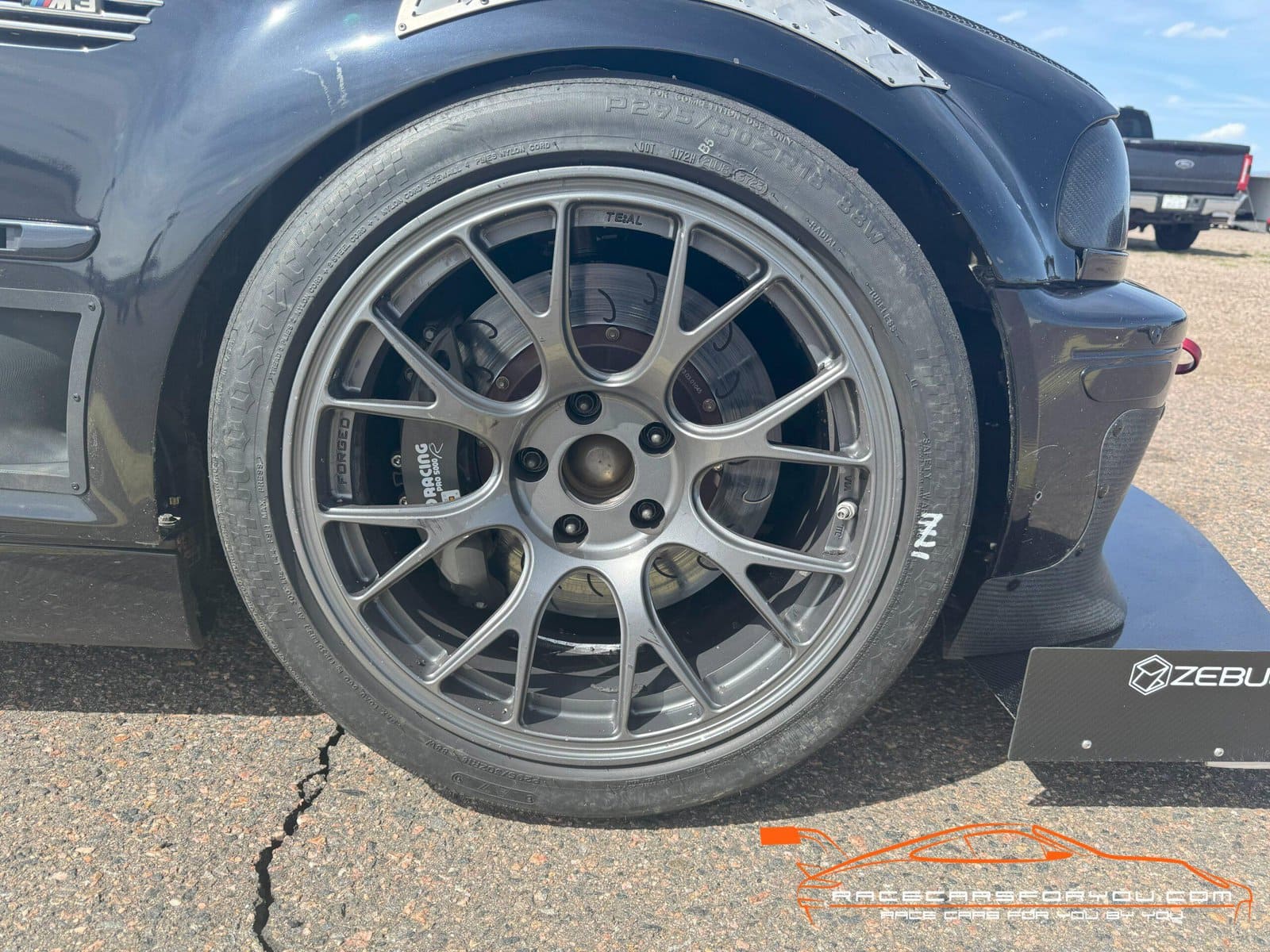

Wheels/Tires

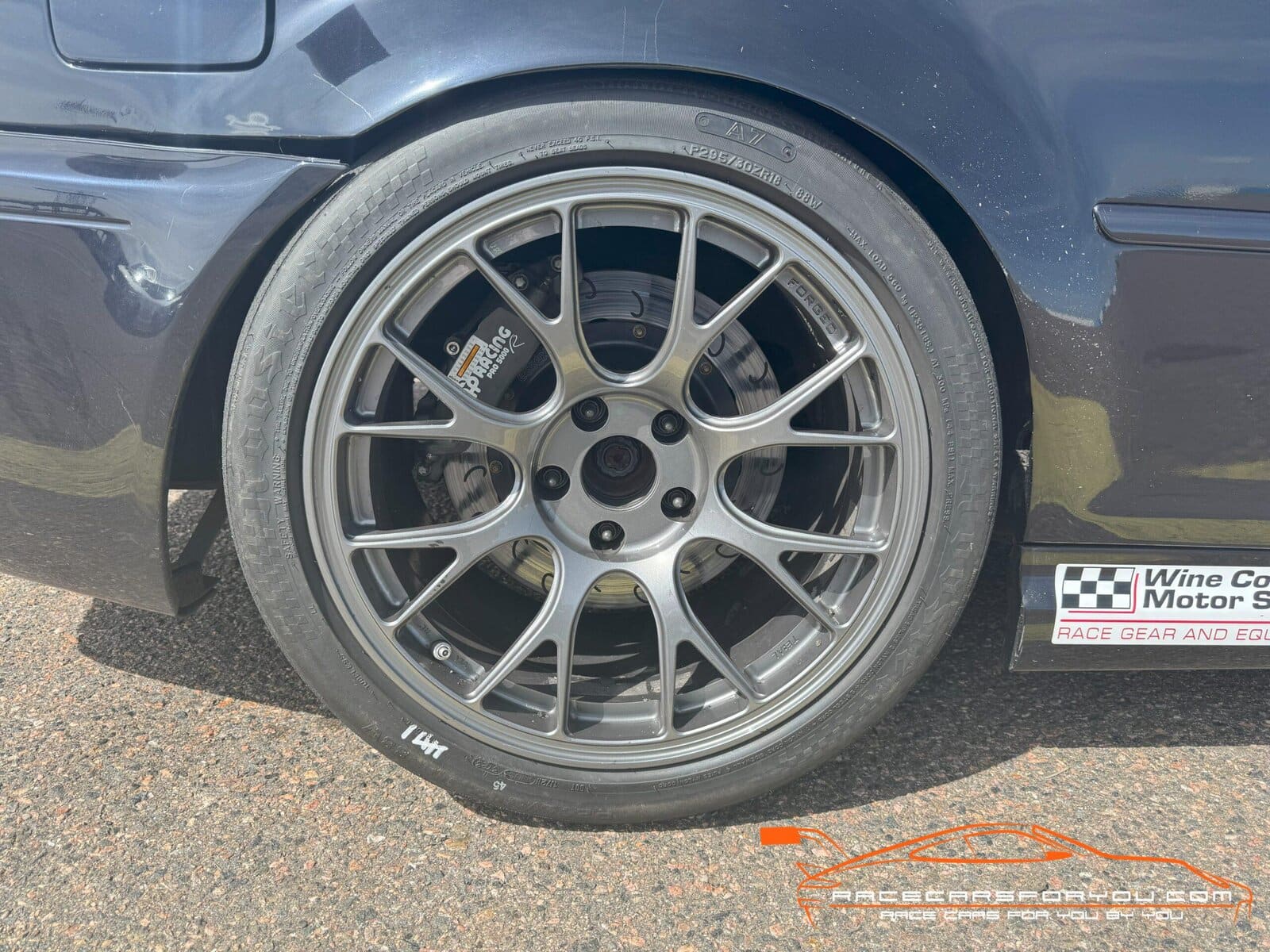

– Bimmerworld TA16 Forged Wheels (18” x 10.5” ET25 – square set-up)

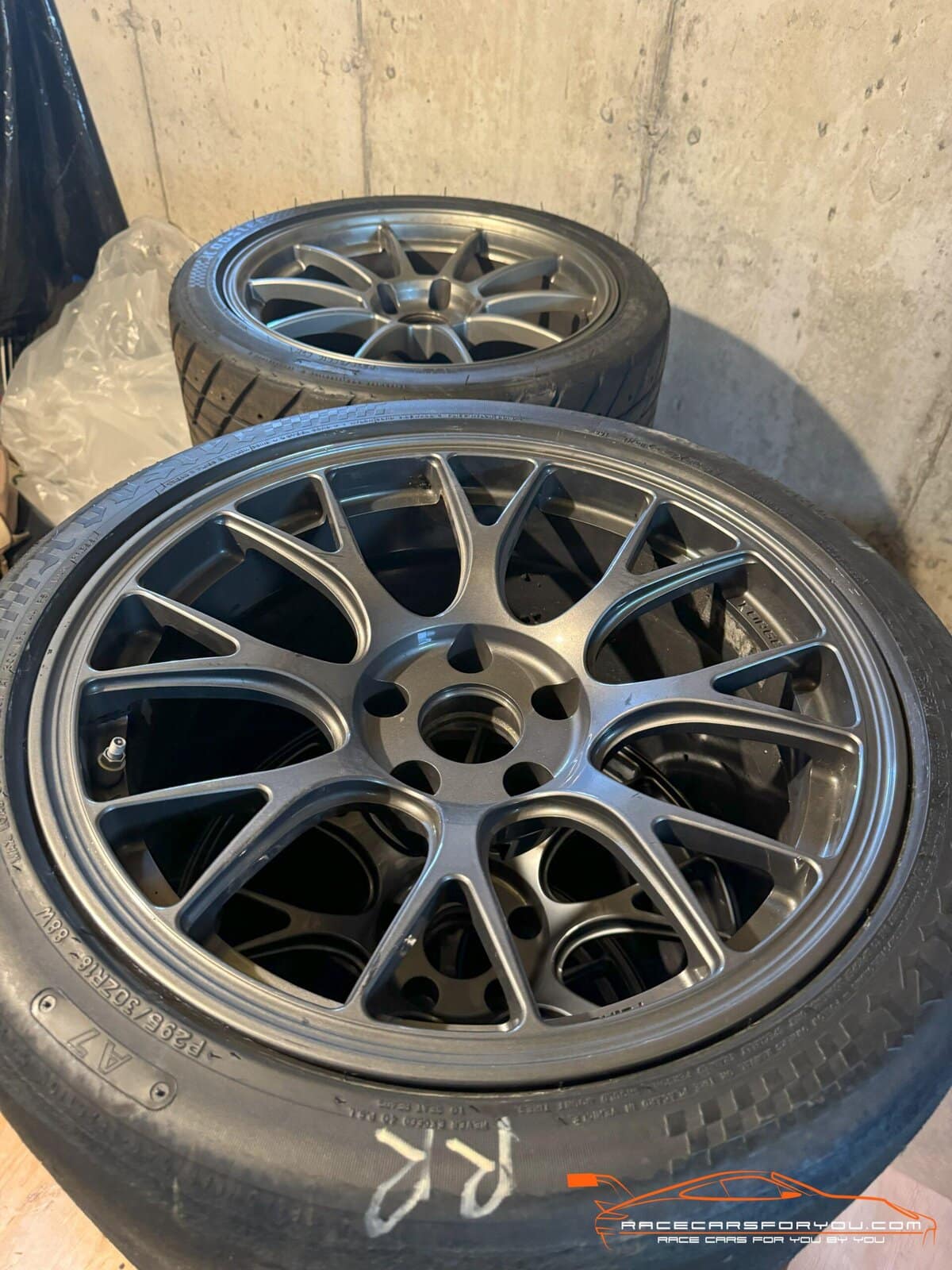

– Hoosier 295/30/18 Tires (stickers – installed on spare wheels)
– Bimmerworld Premium Race Wheel Stud & Nut Package (Done in May 2023)
– Bimmerworld 12mm wheel spacers

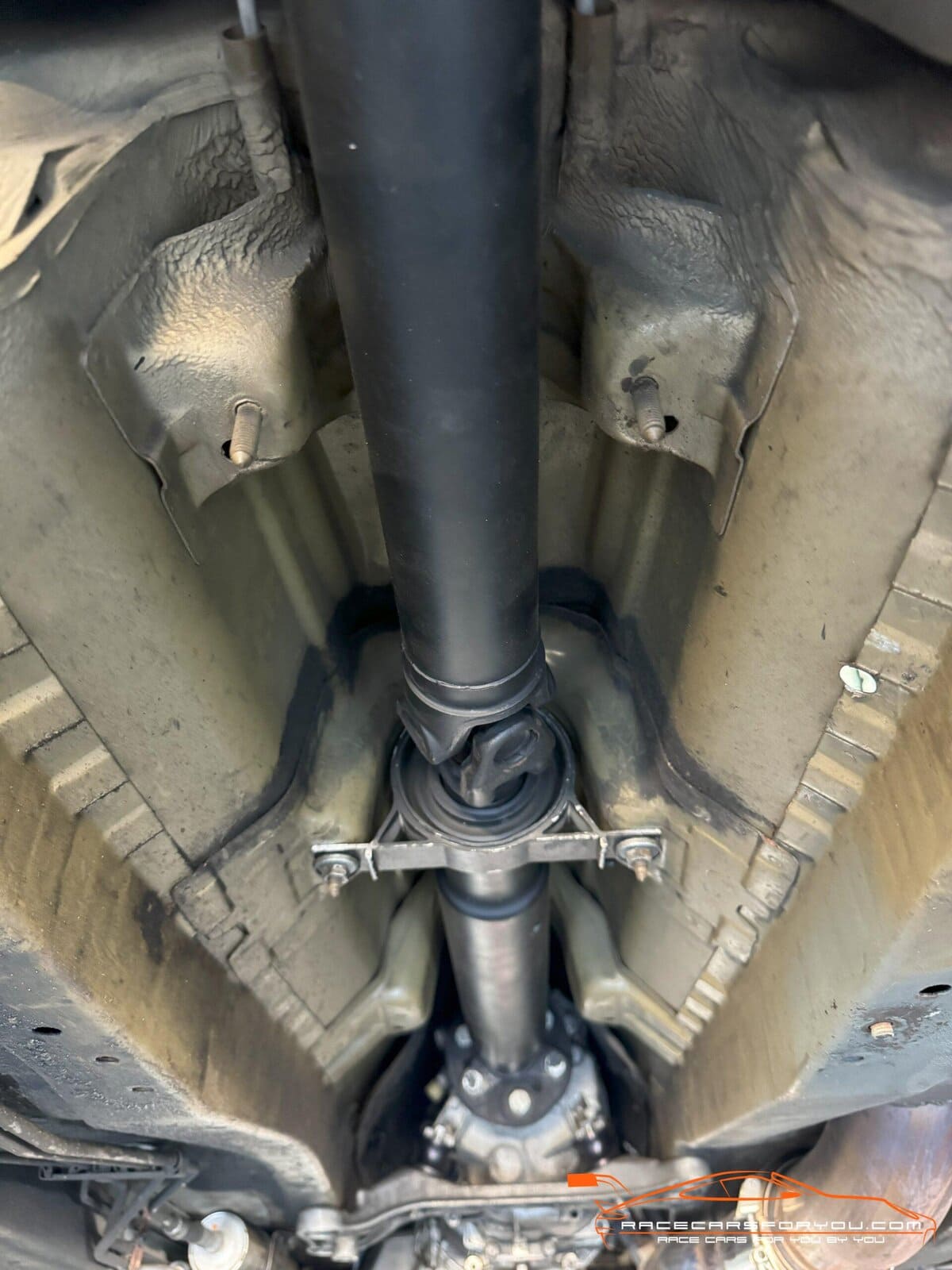

Differential/Transmission
– Bimmerworld/Diffsonline 4.10 Variable Ramp Triple Clutch (30/90 Ramps) Diff (w/REM polishing)
– Bimmerworld Solid Differential, Engine, and Transmission Mounts
– Tilton Clutch

Other/Spares
– HARD Motorsports E46 Firewall HVAC Block-off Plate
– HARD Motorsports Polycarbonate Rear Windows (w/ducting to Chillout helmet blower)
– Rear window is lexan
– Bimmerworld Folding Race Tow Hook (Front – Red)
– Aerocatch 120-2000 above panel hood latches and aluminum pins
– Lifeline Zero 360 FIA Novec 1230 Fire Marshal Mechanical Suppression System (2.25kg)
– Maglock Magnetic Forced Fresh Air Helmet Coupling System & Safe Quick Connect
– FluidLogic Coaxial System (forced air) with FluidLogic Microbutton on steering wheel (bottle 64 oz.)
– Lifeline LED Rain Light (rear)

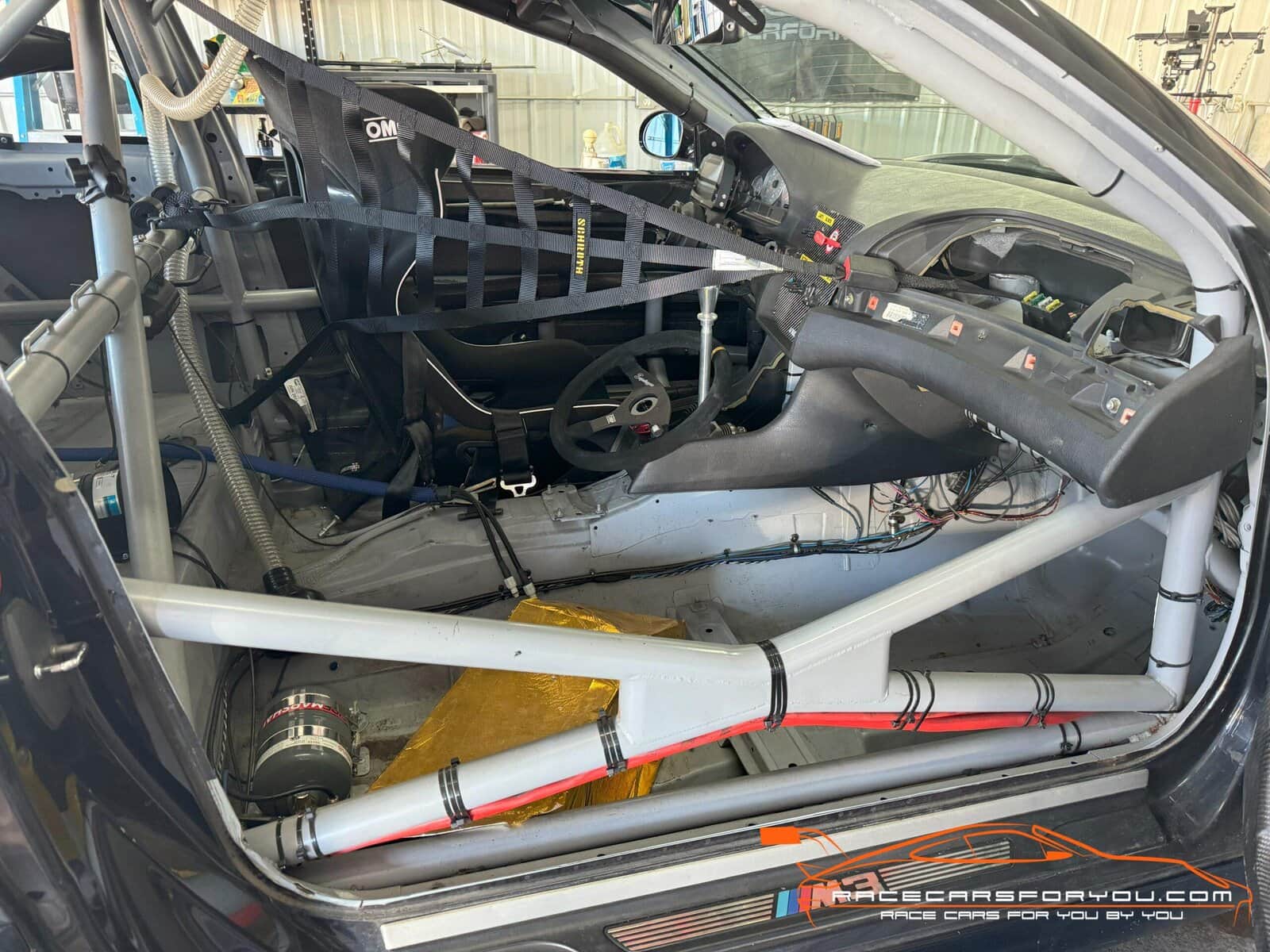

– Cage done by JPC Fabrication in Stroudsburg, Pennsylvania
– NASA Logbook

Fluids/Alignment/Performance
– Motul RBF600 Brake Fluid
– Redline 75w-140 Gear Oil (Differential)
– Redline D4 ATF Fluid (Transmission)
– Liqui-Moly RaceTech 10W60 Oil (Motor)
– Weight (all fluids, ½ tank of gas & no driver, full size battery: 2752 lbs.)
– LF: 667 lbs.
– RF: 776 lbs.
– LR: 683 lbs.
– RR: 626 lbs.
– Weight (Distribution)
– Front: 1443 lbs. (52.4%)
– Rear: 1309 lbs. (47.6%)
– Cross: 1459 lbs. (53.01%)
– Camber/Caster/Toe:
– LF: -3.83/5.73/-0.08
– RF: -3.91/6.83/-0.07
– Camber//Toe:
– LR: -2.61/0.09
– RR: -2.66/0.04

Recent Maintenance
– New OEM BMW Power Steering Rack
– New OEM BMW Power Steering High Pressure Hose
– New OEM BMW Power Steering Pump
– New OEM BMW Coil Packs
– New OEM BMW Wheel Bearings (all 4 corners)
– New OEM BMW Power Steering Hoses (Cooler to Reservoir and Rack to Cooler)
